How does an agate grinder work? Planetary ball milling principle for efficient sample processing

Sample pretreatment is a crucial step in determining the accuracy of analysis results in industries such as soil, geology, environmental protection, agricultural product testing, and resources and environment. The agate grinder efficiently and uniformly grinds samples through mechanical force, meeting the preparation needs of various types of samples and providing a reliable sample foundation for subsequent heavy metal analysis, element detection, and physicochemical property testing, significantly improving data accuracy and experimental efficiency.

Working principle of agate grinder

The agate grinder is based on the principle of planetary ball milling, and achieves multidimensional mechanical action on the sample through high-speed relative motion between the grinding tank and the main disk. Its core working mechanism includes:

Multi dimensional force composite effect: By comprehensively utilizing impact force, shear force, and friction force, effective treatment of samples with different characteristics such as brittleness, fiber, and low to medium hardness can be achieved;

Planetary transmission structure: The main disk and grinding tank rotate at high speed in reverse at a ratio of 1:2, generating strong eddy currents and ball milling effects to ensure sufficient and uniform sample grinding;

Multiple operating modes: supporting various working modes such as one-way continuous, one-way interval, two-way alternating interval, and timed stop, to meet the processing needs of different samples.

This device achieves dry or wet grinding through mechanical force control, avoiding chemical contamination, and is particularly suitable for analysis scenarios with high purity requirements.

Technical advantages and core functions

1. High flexibility and adaptability

The main disk speed is 50-450 r/min, and the grinding tank speed is 100-900 r/min. It can handle various materials such as soil, environmental samples, and agricultural products. The sample size can reach up to 12mm (soil) for large injection sizes and up to 0.1 μ m for small sample sizes.

2. Intelligent control and convenient operation

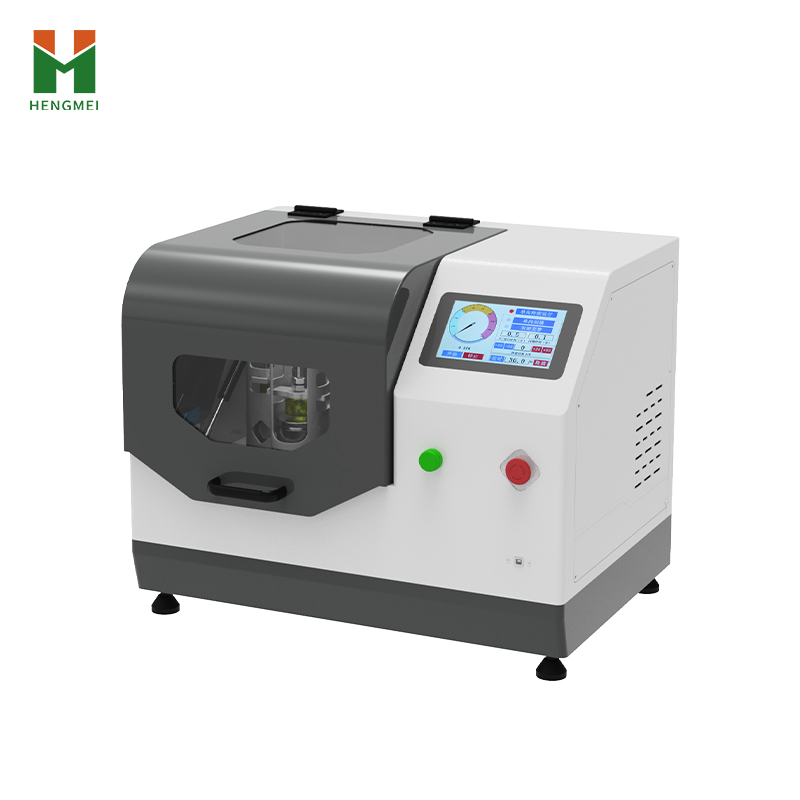

Equipped with a 7-inch color touch screen, it supports free setting of operating modes, and the continuous running time can be set from 0 to 999 hours. It has a power-off memory function and does not require repeated settings. Standard wireless remote control, supports remote operation, enhances safety and convenience of use.

3. Stable, reliable, and secure protection

The motor has a power of 1.1kW, a voltage of 220V ± 10%, single-phase power supply, and can work continuously for 90 hours at full load. Built in overload protection and emergency stop button, sealed grinding chamber design with observation window to ensure safe operation.

4. Multi material grinding tank compatible

Supports various specifications of grinding tanks such as 100ml and 250ml, with materials available including agate, zirconia, polytetrafluoroethylene, stainless steel, etc., to adapt to different sample characteristics and testing requirements.

Main application areas

Environmental monitoring and third-party testing: used for pre-treatment of heavy metal analysis in soil and solid waste;

Agriculture and Agricultural Product Quality and Safety: Homogenization and Grinding of Grain and Crop Samples for Composition and Pollution Detection;

Geology and mineral resources: crushing and preparation of ore and rock samples, assisting mineral analysis;

Research and Education: Experimental sample processing for materials, chemistry, environment, and other disciplines in universities and research institutes.

The agate grinder has become an indispensable equipment in modern sample pretreatment due to its high efficiency, flexibility, and safety. With the continuous improvement of data accuracy requirements in the testing industry, agate grinders with reliable performance and intelligent operation will play an increasingly important role in the fields of environment, agriculture, geology, and scientific research. Choosing a suitable agate grinder is not only a guarantee for improving experimental efficiency, but also an important technical support for achieving high-quality detection and analysis.
