Soil Solidity Measuring Instrument

Product Introduction:

Soil solidity measurement is the use of a soil solidity meter to measure the ability of soil to resist external deformation. When the probe of the soil compaction meter is pressed into the soil, the spring proportional to the resistance received by the probe will also be compressed accordingly, thereby measuring the compaction of the soil. The measurement results are usually expressed in terms of pressure per unit area, used to evaluate whether the soil is too compacted or loose.

Working principle:

Soil solidity refers to the soil resistance equivalent to the vertical pressure when a plunger (or cone) is inserted into the soil, also known as penetration resistance. It is usually measured using a solidity meter (hardness tester). The measured values of the same method are mainly determined by soil texture, capacity, and moisture content. The impact of moisture content is the greatest among them. Soil solidity can predict soil carrying capacity, tillage ability, and resistance to root extension.

Application scope:

1. Evaluate soil structure: By measuring soil solidity, the structural condition of the soil can be understood, providing a basis for rational planting, scientific irrigation, and soil health management.

2. Optimize agricultural practices: Assist in determining the operational resistance of agricultural machinery in the soil, guide timely plowing, raking and other agricultural activities, and avoid difficulties in sowing and mechanical damage caused by overly tight or loose soil.

3. Monitoring the cultivability of farmland: Regularly measuring soil solidity can determine the cultivability of farmland and guide agricultural production.

Execution standards:

LYT1223-1999 Determination of Forest Soil Solidness

Product features:

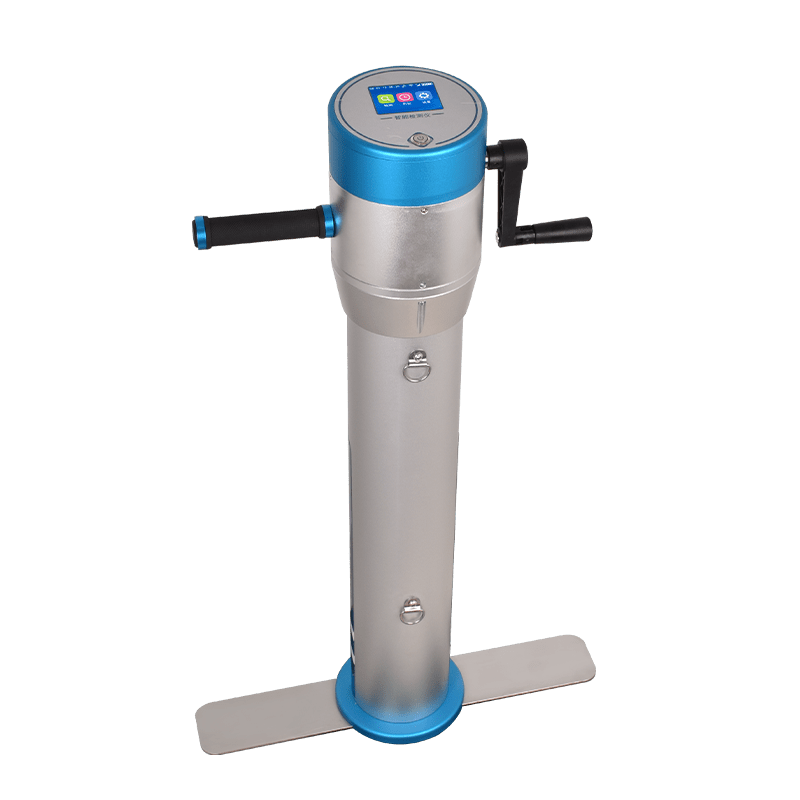

The equipment consists of a soil compaction meter, a rotary vernier caliper, and a data storage recorder

Automatically stored by stroke, stroke (1-480) mm adjustable (accuracy: 1mm)

Real time recording of measurement curves.

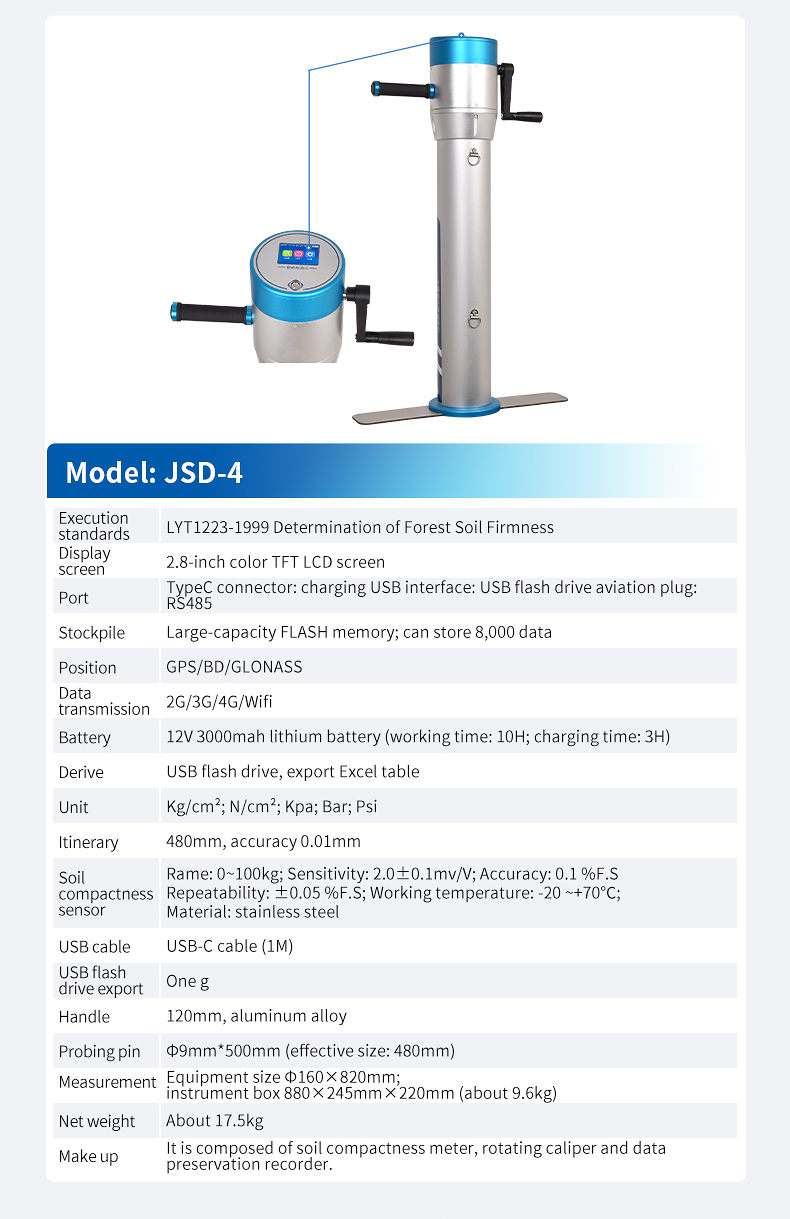

Technical Parameter:

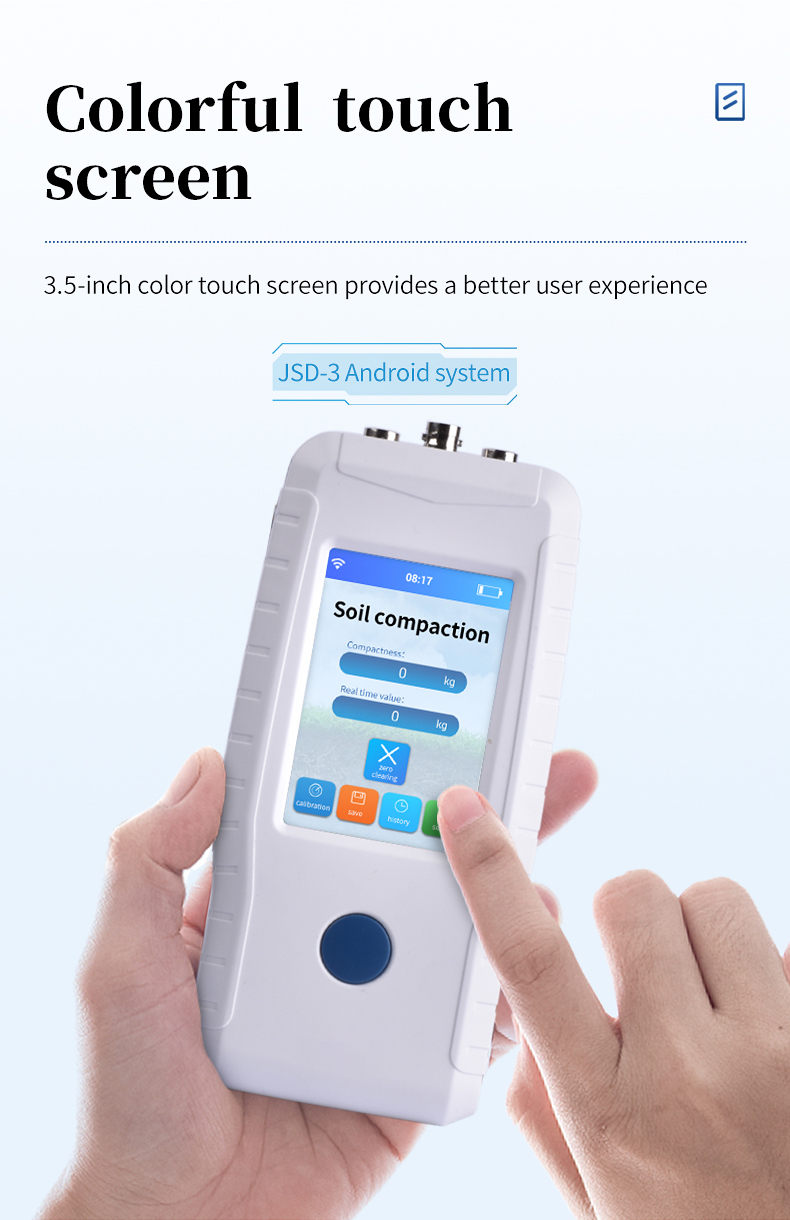

1. Display: 2.8-inch color touch screen

2. Processor: 32-bit high-performance microprocessor

3. Language: Chinese and English

4. Probe: Stainless steel diameter 10 * 500mm (with a scale of 1mm), 1 piece

5. Probe: Stainless steel diameter 12.8 * 40mm (with a scale of 1mm), 1 piece

6. Range: 0-100 kg/cm ²; 980.67N/cm²; 9806.65Kpa; 98.07Bar; 1422.33Psi

7. Unit: kg/cm ²; N/cm²; Kpa; Bar; Psi;

8. Resolution: 0.01

9. Comprehensive accuracy: 0.1% F ∙ S

10. Repeatability: ± 0.05% F ∙ S

11. Network: 4G

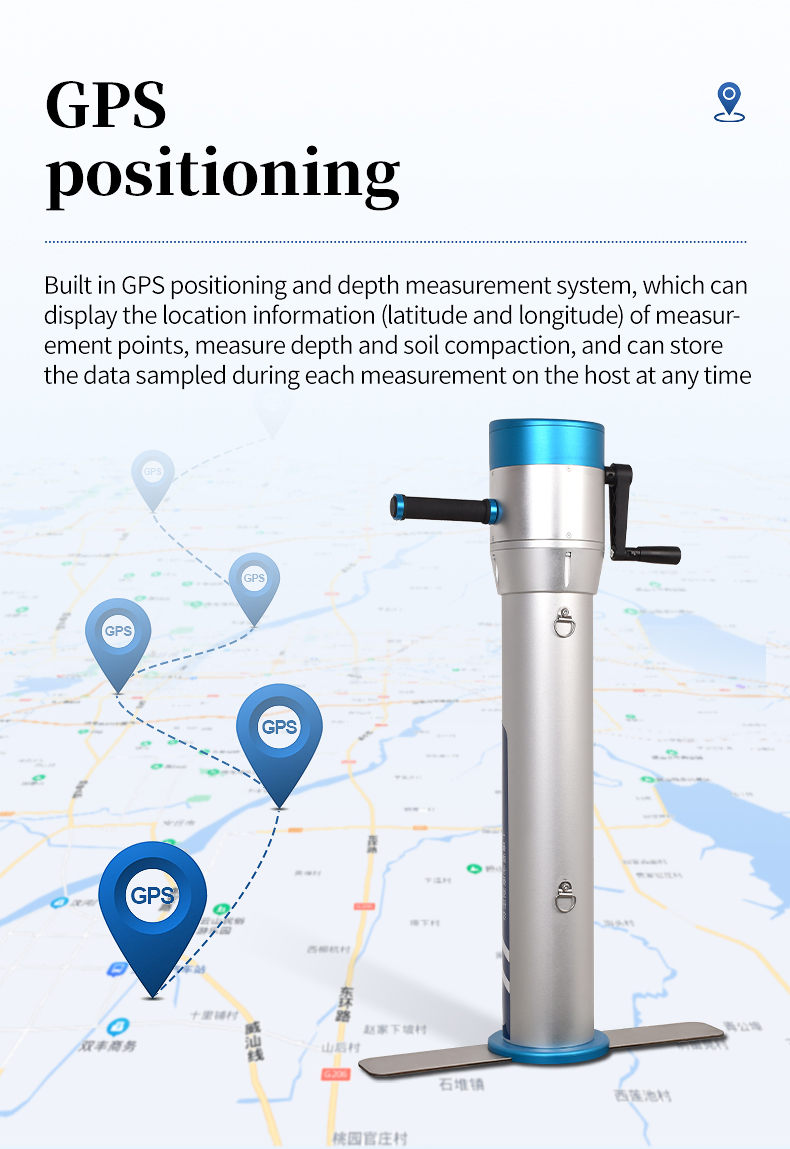

12. Positioning: GPS positioning

13. Upload platform

14. Time setting: 24-08-01+14.30.00 (14:30:00 on August 1, 2024)

15. Storage: Large capacity FLASH memory; Can store 100000 pieces of data;

16. Depth detection: 1mm

17. Automatic storage: 1~500mm (default off)

18. Measurement curve: 30kg (default)/90kg/450kg

19. Export: USB drive export, export Excel spreadsheet

20. Interface: SIM card holder; USB; Type-C

21. USB flash drive: 1GB; for data export purposes

22. Battery: 12V/3000mAh lithium battery;

23. Operating environment: Temperature: 0-40 ℃; Humidity: 20% to 90%

24. Power supply: Input: AC110~240V/0.3A 50Hz; Output: 5VDC 1A

25. Host size: φ 160 * 820mm

26. Host weight: Approximately 17KG

27. Instrument box: 880mm * 245mm * 220mm (approximately 9kg)

28. Total weight: Approximately 26kg
